Heyco Liquid Tight Break-Thru Plug 1/2" Mount Hole Dia. C2058
Heyco Liquid Tight Break-Thru Plug 1/2" Mount Hole Dia. C2058
Heyco Liquid Tight Break-Thru Plug 1/2" Mount Hole Dia. C2058

Heyco Liquid Tight Break-Thru Plug 1/2" Mount Hole Dia. C2058

Vendor
Heyco
Regular price
$4.98
Sale price
$4.98
Quantity must be 1 or more

  • These co-molded nylon and elastomer parts function as Liquid Tight Plugs with an IP 67/68 rating, yet can be pierced by round wire, cable or tubing to function as Liquid Tight Bushings with the same resulting IP 67/68 rating.
  • For use in panels as thin as .020" (0,5 mm) and as thick as .250" (6,4 mm).
  • Certified by UL under UL 635
  • Provide liquid tight closure when used as a plug. When pierced, functions as a liquid tight bushing that converts raw edged holes to smooth, neat, insulated holes.
  • Used as a liquid tight bushing, HEYCo-molded Liquid Tight Break-Thru Plugs insulate and mechanically protect electrical and telecommunications cable, tubing, hose, rope, and utility lines.
  • Locking fingers snap into holes with fingertip pressure.
  • Locking fingers in fractional increments up to the maximum panel thickness.
  • Withstands a push back force of greater than 35 pounds.
  • Color is black.

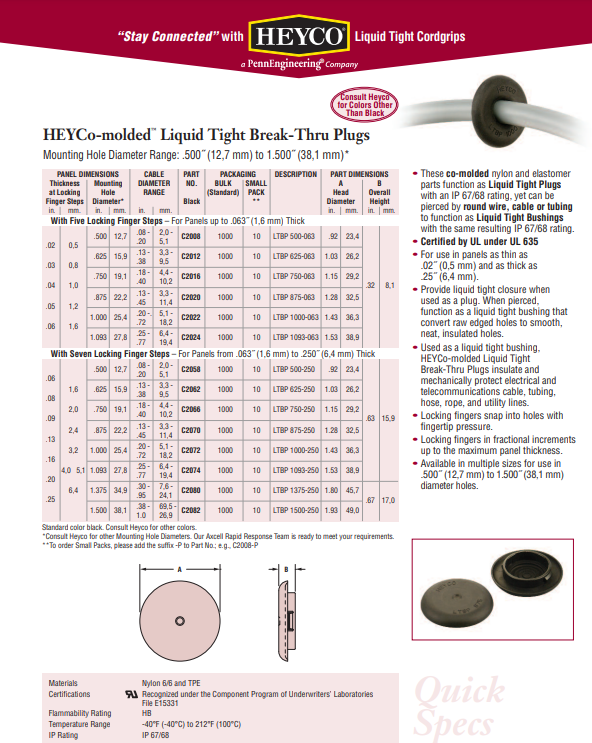

  • HEYco-molded Liquid Tight Break-Thru Plugs
    Mounting Hole Diameter Range: .500" to 1.500" (12,7 mm to 38,1 mm)
    Panel Dimensions Cable Diameter Range Part
    Number
    Description Part Dimensions
    Thickness at
    Locking Finger Steps
    Mounting Hole
    Diameter
    A
    Head Diameter
    B
    Overall Height
    in. mm. in. mm. in. mm. Black in. mm. in. mm.
    For Panels up to .063" (1,6 mm) Thick
    .020
    .032
    .040
    .048
    .063
    0,5
    0,8
    1,0
    1,2
    1,6
      .500 12,7 .080 - .200 2,0 - 5,1 C2008 LTBP 500-063   .92 23,4 .32 8,1
      .625 15,9 .130 - .375 3,3 - 9,5 C2012 LTBP 625-063 1.03 26,2
      .750 19,1 .175 - .400 4,4 - 10,2 C2016 LTBP 750-063 1.15 29,2
      .875 22,2 .130 - .450 3,3 - 11,4 C2020 LTBP 875-063 1.28 32,5
    1.000 25,4 .200 - .715 5,1 - 18,2 C2022 LTBP 1000-063 1.43 36,3
    1.093 27,8 .250 - .765 6,4 - 19,4 C2024 LTBP 1093-063 1.53 38,9
    For Panels from .063" to .250" (1,6 mm to 6,4 mm) Thick
    .063
    .080
    .094
    .125
    .157
    .200
    .250
    1,6
    2,0
    2,4
    3,2
    4,0
    5,1
    6,4
      .500 12,7 .080 - .200 2,0 - 5,1 C2058 LTBP 500-250   .92 23,4 .63 15,9
      .625 15,9 .130 - .375 3,3 - 9,5 C2062 LTBP 625-250 1.03 26,2
      .750 19,1 .175 - .400 4,4 - 10,2 C2066 LTBP 750-250 1.15 29,2
      .875 22,2 .130 - .450 3,3 - 11,4 C2070 LTBP 875-250 1.28 32,5
    1.000 25,4 .200 - .715 5,1 - 18,2 C2072 LTBP 1000-250 1.43 36,3
    1.093 27,8 .250 - .765 6,4 - 19,4 C2074 LTBP 1093-250 1.53 38,9
    1.375 34,9 .300 - .950 7,6 - 24,1 C2080 LTBP 1375-250 1.80 45,7 .67 17,0
    1.500 38,1 .375 - 1.060 9,5 - 26,9 C2082 LTBP 1500-250 1.93 49,0
